Home / Indexable Profiling End Mill, M200 Series, High Speed Steel, 0.3700 in Depth of Cut

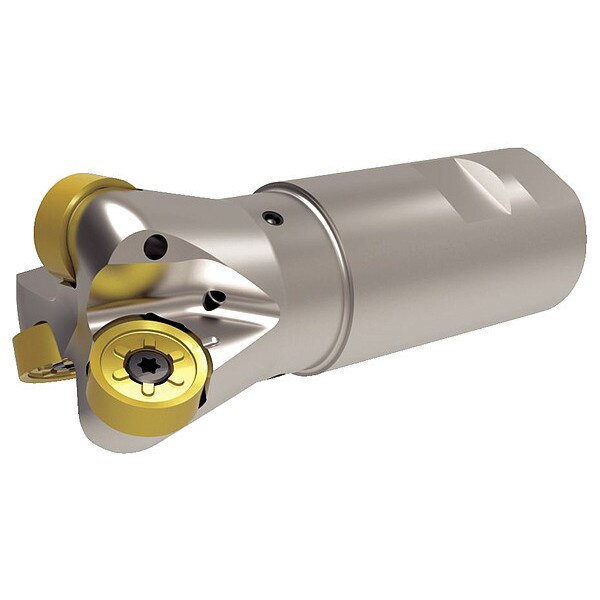

Indexable Profiling End Mill, M200 Series, High Speed Steel, 0.3700 in Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 2 in, Depth of Cut 0.3700 in, Shank Dia. 1-1/2 in, Overall Length 4.6900 in, ANSI Code M200D200Z03W150RN64, Compatible Hardware Insert Screw M5x0.8 x 14.T20, T Handle Torx Wrench, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Pocketing, Side/Shoulder Milling: Ball Nose, Slotting: Square End

Web Price

$1,079.99 / each

Qty

Product Details

ANSI Code M200D200Z03W150RN64

Compatible Hardware Insert Screw M5x0.8 x 14.T20, T Handle Torx Wrench

Coolant Fed Coolant Through

Country of Origin (subject to change) United States

Cutting Application 3D Profiling, Face Milling, Pocketing, Side/Shoulder Milling: Ball Nose, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 0.3700 in

Features 12 Cutting Edges, Anti-Rotation Feature for Better Stability and Higher Feed Rates, Double-Sided, Excellent for Heavy Roughing and Semi-Finishing of all Materials, Suitable for High-Feed Face Milling Operations

Head Dia. 2 in

Insert Holding Type Screw

Insert Inscribed Circle 3/4 in

Insert Shape Round

Insert Size RN_J64__

Insert Style RNGJ64

ISO Number M200D200Z03W150RN64

Material - Machining High Speed Steel

Max. Cutting Dia. 2 in

Max. Speed 19,000 RPM

Neck Dia. 1-3/8 in

Number of Inserts 3
