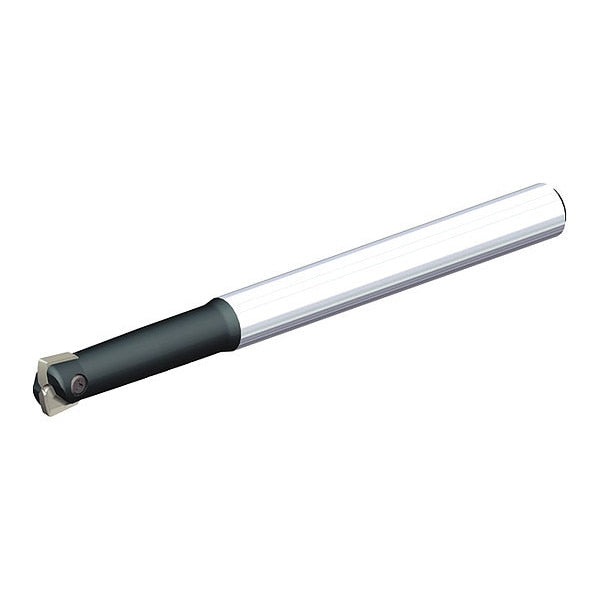

Indexable Profiling End Mill, M270 Series, High Speed Steel, 0.0236 in Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 1/2 in, Depth of Cut 0.0236 in, Shank Dia. 1/2 in, Overall Length 5-1/2 in, ANSI Code M270TD050C050L550, Compatible Hardware Insert Screw M3x0.5 x 9.9 T9, Torx Wrench, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Roughing, Slotting: Square End

Web Price

$477.49 / each

Qty

Product Details

ANSI Code M270TD050C050L550

Compatible Hardware Insert Screw M3x0.5 x 9.9 T9, Torx Wrench

Coolant Fed Coolant Through

Country of Origin (subject to change) Germany

Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Roughing, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 0.0236 in

Features Excellent in Long Reach Applications, High Metal Removal Rates, Rough and Semi-Finishing Applications

Head Dia. 1/2 in

Head Projection Length 1 in

Insert Holding Type Screw

Insert Size M270HF0500

Insert Style M270HF

ISO Number M270TD050C050L550

Material - Machining High Speed Steel

Max. Cutting Dia. 1/2 in

Max. Speed 55,000 RPM
