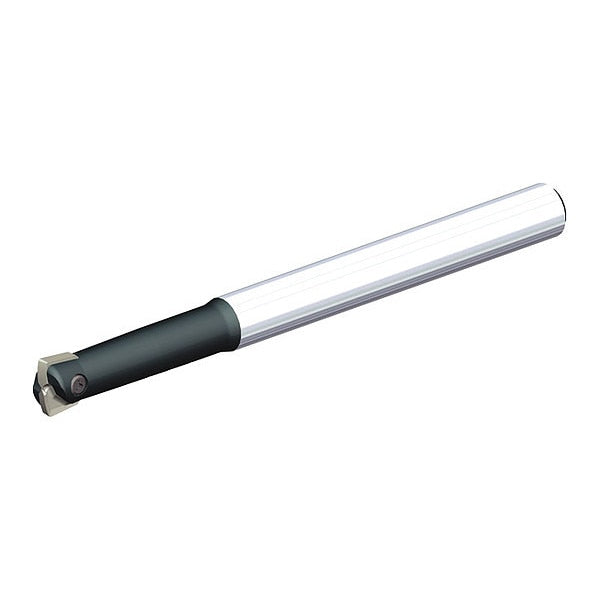

Home / Indexable Profiling End Mill, M270 Series, High Speed Steel, 0.0354 in Depth of Cut

Indexable Profiling End Mill, M270 Series, High Speed Steel, 0.0354 in Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 5/8 in, Depth of Cut 0.0354 in, Shank Dia. 5/8 in, Overall Length 5-3/4 in, ANSI Code M270TD062C062L575, Compatible Hardware Insert Screw M4x0.5 x 13.1 T15, Torx Wrench, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Roughing, Slotting: Square End
graingerSKU: , mscSKU: , zoro_no: G3803692, mongo_id: 65bbe93c22d7a989a9942541

Web Price

$531.24 / each

Qty

Product Details

ANSI Code M270TD062C062L575

Compatible Hardware Insert Screw M4x0.5 x 13.1 T15, Torx Wrench

Coolant Fed Coolant Through

Country of Origin (subject to change) Germany

Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Roughing, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 0.0354 in

Features Excellent in Long Reach Applications, High Metal Removal Rates, Rough and Semi-Finishing Applications

Head Dia. 5/8 in

Head Projection Length 1-1/4 in

Insert Holding Type Screw

Insert Size M270HF0625

Insert Style M270HF

ISO Number M270TD062C062L575

Material - Machining High Speed Steel

Max. Cutting Dia. 5/8 in

Max. Speed 53,000 RPM
