Home / Indexable Profiling End Mill, M370 Series, High Speed Steel, 1.25mm Depth of Cut

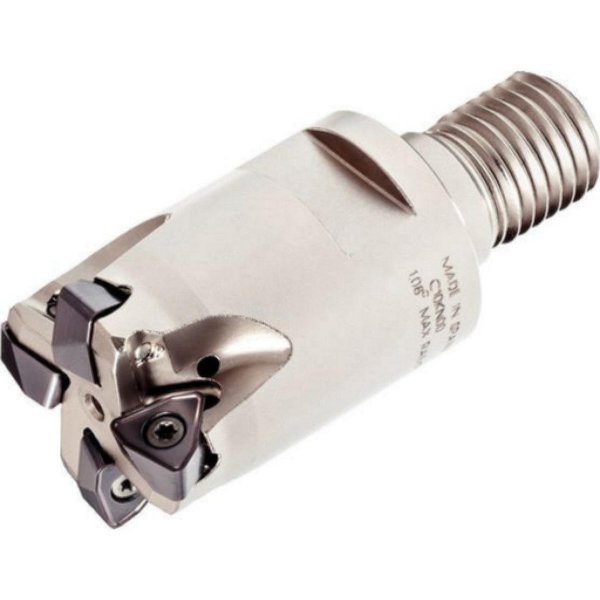

Indexable Profiling End Mill, M370 Series, High Speed Steel, 1.25mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 42.00mm, Depth of Cut 1.25mm, Shank Dia. 29.00mm, Overall Length 67.50mm, ANSI Code M370D042Z05M16WO08, Compatible Hardware Insert Screw M3x0.5 x 9, Torx DT-9, Connection Size M16, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Roughing, Slotting: Square End
graingerSKU: , mscSKU: , zoro_no: G3785255, mongo_id: 65bbe7193aaddbd5a907558b

Web Price

$691.24 / each

Qty

Product Details

ANSI Code M370D042Z05M16WO08

Compatible Hardware Insert Screw M3x0.5 x 9, Torx DT-9

Connection Size M16

Coolant Fed Coolant Through

Country of Origin (subject to change) Germany

Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Roughing, Slotting: Square End

Cutting Direction Right Hand

Depth of Cut 1.25mm

Features Double-Sided, First Choice for Roughing Applications, High Metal Removal Rates, Six Cutting Edges

Head Dia. 42.00mm

Head Projection Length 43.00mm

Insert Holding Type Screw

Insert Inscribed Circle 7.79mm

Insert Shape Trigon

Insert Size WOEJ080412SRMH

Insert Style WOEJ-MH

ISO Number M370D042Z05M16WO08

Material - Machining High Speed Steel
