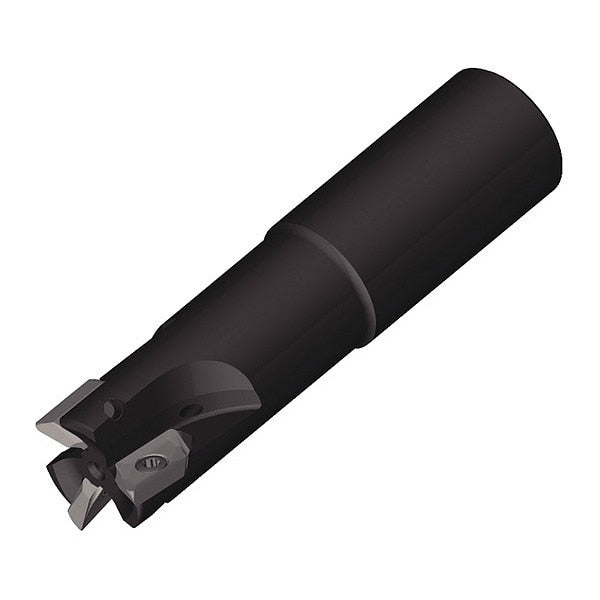

Indexable Square Shoulder End Mill, VHSC Series, 5/8 in Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Square Shoulder End Mill, Max. Cutting Dia. 1 1/2 in, Shank Dia. 1-1/2 in, Straight, Overall Length 6.0300 in, ANSI Code VHSC150Z03C150XD16, Compatible Hardware DP5009A, Torx Plus Drive Wrench, Coolant Fed Coolant Through
graingerSKU: 274LR0, mscSKU: , zoro_no: G3794662, mongo_id: 65bbe82a22d7a989a98de01c

Web Price

$902.49 / each

Qty

Product Details

ANSI Code VHSC150Z03C150XD16

Compatible Hardware DP5009A, Torx Plus Drive Wrench

Coolant Fed Coolant Through

Country of Origin (subject to change) Germany

Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank

Cutting Direction Right Hand

Depth of Cut 5/8 in

Features Best-in-Class Solution for Thin-Walled and Stepping Down Machining, Consistent Axial Gage Length with Insert Nose Radii From 0.008 in (0.2mm) up to 0.236 in (6mm), Only One Cutter Body Style to Load Inserts with Nose Radii from 0.008 in (0.2mm) up to 0.236 in (6mm), Productivity Booster up to 525in3/min (8600cm3/min MRR at Machining Aluminum Components

Head Projection Length 3-3/4 in

Insert Holding Type Screw

Insert Shape 89.27 Degrees Parallelogram

Insert Size 16M508

Insert Style XDET FRALP

ISO Number VHSC150Z03C150XD16

Material High Speed Steel

Material - Machining High Speed Steel

Max. Cutting Dia. 1 1/2 in

Max. Speed 36,500 RPM

Min. Cutting Dia. 1-1/2 in

Number of Coolant Holes 2
