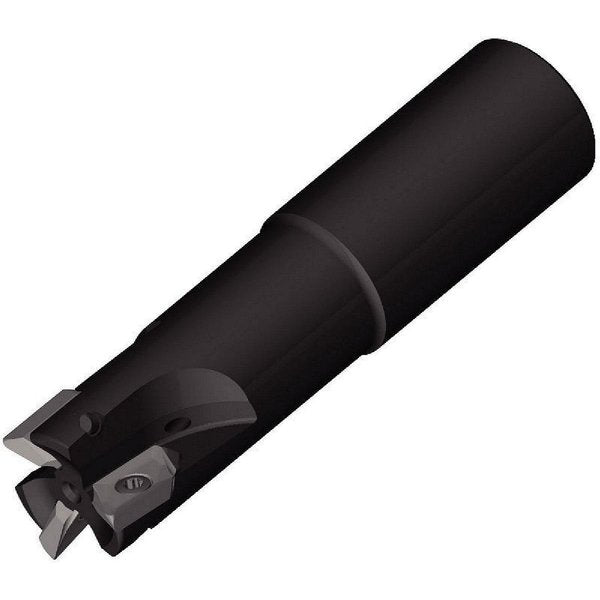

Indexable Square Shoulder End Mill, VHSC Series, High Speed Steel, 16.00mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Depth of Cut 16.00mm, Shank Dia. 25.00mm, Overall Length 131.00mm, ANSI Code VHSC025Z02A25XD16, Compatible Hardware DP5009A, Torx Plus Drive Wrench, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank
graingerSKU: 274LJ9, mscSKU: , zoro_no: G3794495, mongo_id: 65bbf6492fa6309335be740a

Web Price

$801.24 / each

Qty

Product Details

ANSI Code VHSC025Z02A25XD16

Compatible Hardware DP5009A, Torx Plus Drive Wrench

Coolant Fed Coolant Through

Country of Origin (subject to change) Germany

Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank

Cutting Direction Right Hand

Depth of Cut 16.00mm

Features Best-in-Class Solution for Thin-Walled and Stepping Down Machining, Consistent Axial Gage Length with Insert Nose Radii From 0.008 in (0.2mm) up to 0.236 in (6mm), Only One Cutter Body Style to Load Inserts with Nose Radii from 0.008 in (0.2mm) up to 0.236 in (6mm), Productivity Booster up to 525in3/min (8600cm3/min MRR at Machining Aluminum Components

Head Projection Length 75.00mm

Insert Holding Type Screw

Insert Shape 89.27 Degrees Parallelogram

Insert Size 16M508

Insert Style XDET FRALP

ISO Number VHSC025Z02A25XD16

Material - Machining High Speed Steel

Max. Speed 50,000 RPM

Min. Cutting Dia. 25.00mm

Number of Coolant Holes 2

Number of Inserts 2

Overall Length 131.00mm
