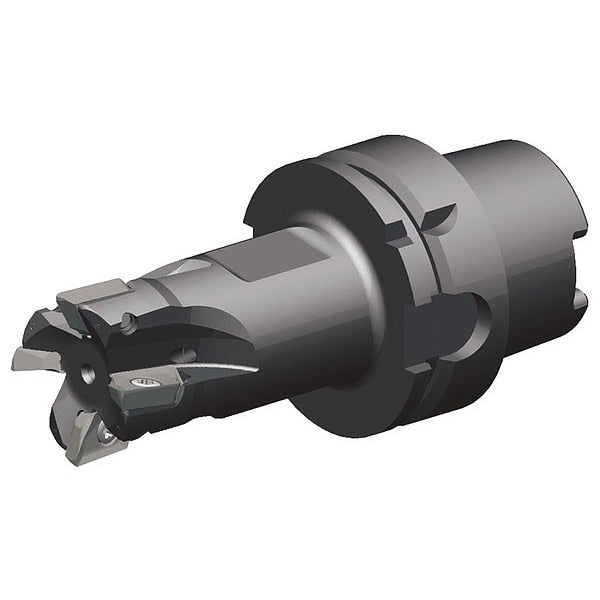

Indexable Square Shoulder End Mill, VHSC Series, High Speed Steel, 16.00mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Depth of Cut 16.00mm, Shank Dia. 63.00mm, Overall Length 133.00mm, ANSI Code VHSC040Z04HSK63XD16, Compatible Hardware DP5009A, Torx Plus Drive Wrench, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
graingerSKU: 274LU3, mscSKU: , zoro_no: G3791573, mongo_id: 65bbe62b3aaddbd5a9011032

Web Price

$1,713.74 / each

Qty

Product Details

ANSI Code VHSC040Z04HSK63XD16

Compatible Hardware DP5009A, Torx Plus Drive Wrench

Coolant Fed Coolant Through

Country of Origin (subject to change) Germany

Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End

Cutting Direction Right Hand

Depth of Cut 16.00mm

Features Best-in-Class Solution for Thin-Walled and Stepping Down Machining, Consistent Axial Gage Length with Insert Nose Radii From 0.008 in (0.2mm) up to 0.236 in (6mm), Only One Cutter Body Style to Load Inserts with Nose Radii from 0.008 in (0.2mm) up to 0.236 in (6mm), Productivity Booster up to 525in3/min (8600cm3/min MRR at Machining Aluminum Components

Head Projection Length 75.00mm

Insert Holding Type Screw

Insert Shape 89.27 Degrees Parallelogram

Insert Size 16M540

Insert Style XDET FRALP

ISO Number VHSC040Z04HSK63XD16

Material - Machining High Speed Steel

Max. Speed 35,000 RPM

Min. Cutting Dia. 40.00mm

Neck Dia. 36.33mm

Number of Coolant Holes 3

Number of Inserts 4
