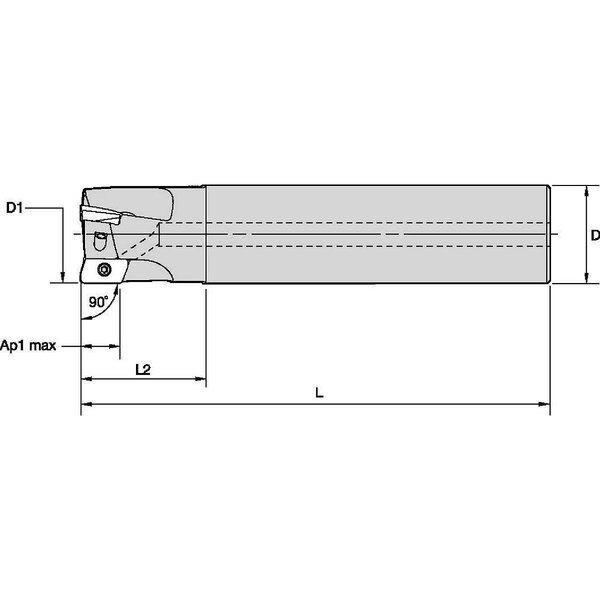

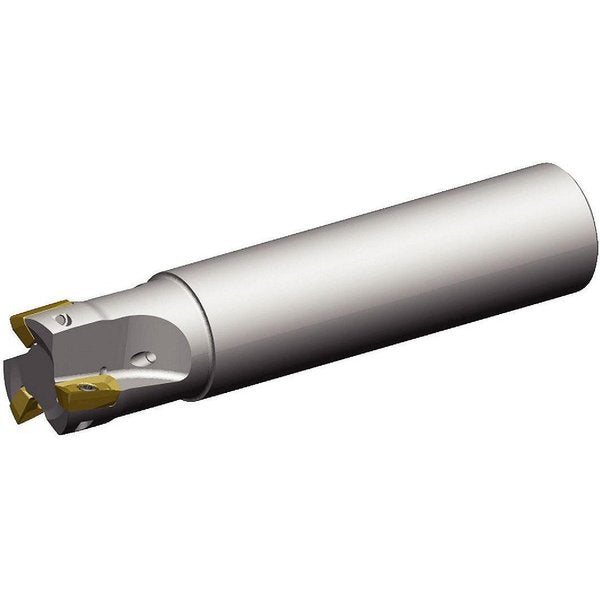

Indexable Square Shoulder End Mill, VSM11 Series, High Speed Steel, 11.53mm Depth of Cut
Indexable Square Shoulder End Mill, VSM11 Series, High Speed Steel, 11.53mm Depth of Cut

Indexable Square Shoulder End Mill, VSM11 Series, High Speed Steel, 11.53mm Depth of Cut

  • Widia
  • Indexable Profiling End Mill, Depth of Cut 11.53mm, Shank Dia. 16.00mm, Overall Length 100.00mm, ANSI Code VSM11D016Z02A16XD11L100, Compatible Hardware Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End

    graingerSKU: 274FW8, mscSKU: , zoro_no: G3800831, mongo_id: 65bbe5a03aaddbd5a9fd7815

Web Price
$433.74 / each
Qty

Product Details

VSM11D016Z02A16XD11L100
Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8
Coolant Through
China
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
Right Hand
11.53mm
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish
31.00mm
Screw
75 Degrees Parallelogram
110408
XD.T PD R
VSM11D016Z02A16XD11L100
High Speed Steel
41,400 RPM
16.00mm
13.81mm
1
2
100.00mm
1
-14 Degrees Radial, 7.167 Degrees Axial
VSM11
16.00mm
69.00mm
Straight
90 Degrees
XDPT11
