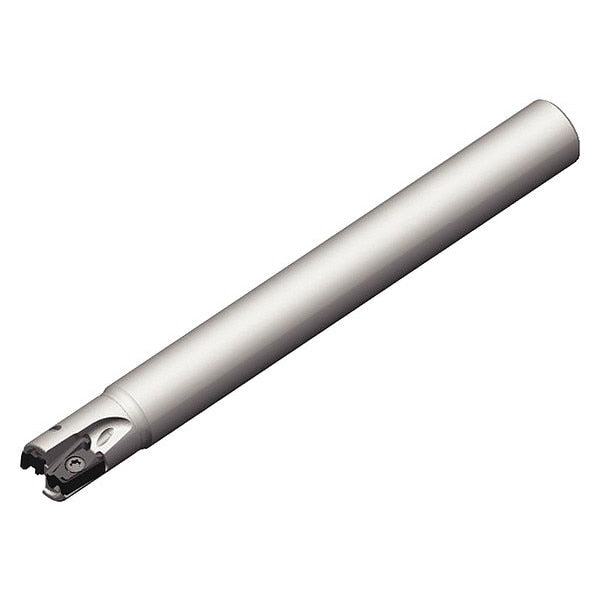

Indexable Square Shoulder End Mill, VSM490-10 Series, High Speed Steel, 0.3940 in Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Depth of Cut 0.3940 in, Shank Dia. 5/8 in, Overall Length 3.6000 in, ANSI Code VSM490D062Z02C062XN10L360, Compatible Hardware Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP 9, Coolant Fed Coolant Through, Cutting Application Face Milling, Side/Shoulder Milling: Square End
graingerSKU: , mscSKU: , zoro_no: G3792553, mongo_id: 65bbe7193aaddbd5a9075592

Web Price

$484.99 / each

Qty

Product Details

ANSI Code VSM490D062Z02C062XN10L360

Compatible Hardware Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP 9

Coolant Fed Coolant Through

Country of Origin (subject to change) Multiple

Cutting Application Face Milling, Side/Shoulder Milling: Square End

Cutting Direction Right Hand

Depth of Cut 0.3940 in

Features Best-in-Class Wall Finish in Axial Stepping-Down Jobs, Lower Cutting Forces and Real Soft Cutting Action, Perfect Fit for Taper 40 Spindles and Driven Units, Reduced Shanks and Long Versions Available

Head Projection Length 0.8500 in

Insert Holding Type Screw

Insert Shape 90 Degrees Rectangle Mill

Insert Size 100408

Insert Style XNGU SRMM

ISO Number VSM490D062Z02C062XN10L360

Material - Machining High Speed Steel

Max. Speed 48,000 RPM

Min. Cutting Dia. 5/8 in

Number of Coolant Holes 2

Number of Inserts 2

Overall Length 3.6000 in
