Home / Indexable Square Shoulder End Mill, VSM490-10 Series, High Speed Steel, 0.3940 in Depth of Cut

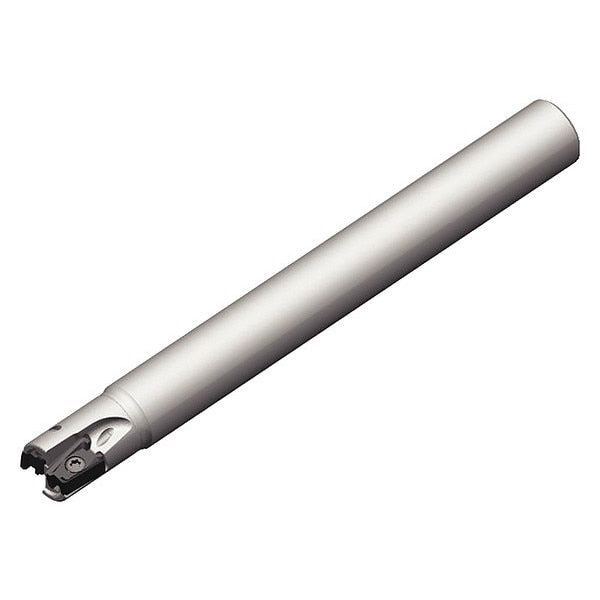

Indexable Square Shoulder End Mill, VSM490-10 Series, High Speed Steel, 0.3940 in Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Depth of Cut 0.3940 in, Shank Dia. 5/8 in, Overall Length 6 in, ANSI Code VSM490D062Z02C062XN10L600, Compatible Hardware Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP 9, Coolant Fed Coolant Through, Cutting Application Face Milling, Side/Shoulder Milling: Square End
graingerSKU: 274LP5, mscSKU: , zoro_no: G3793533, mongo_id: 65bbe6d53aaddbd5a9058b61

Web Price

$506.24 / each

Qty

Product Details

ANSI Code VSM490D062Z02C062XN10L600

Compatible Hardware Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP 9

Coolant Fed Coolant Through

Country of Origin (subject to change) Germany

Cutting Application Face Milling, Side/Shoulder Milling: Square End

Cutting Direction Right Hand

Depth of Cut 0.3940 in

Features Best-in-Class Wall Finish in Axial Stepping-Down Jobs, Lower Cutting Forces and Real Soft Cutting Action, Perfect Fit for Taper 40 Spindles and Driven Units, Reduced Shanks and Long Versions Available

Head Projection Length 1 in

Insert Holding Type Screw

Insert Shape 90 Degrees Rectangle Mill

Insert Size 100408

Insert Style XNGU SRMM

ISO Number VSM490D062Z02C062XN10L600

Material - Machining High Speed Steel

Max. Speed 48,000 RPM

Min. Cutting Dia. 5/8 in

Number of Coolant Holes 2

Number of Inserts 2

Overall Length 6 in
