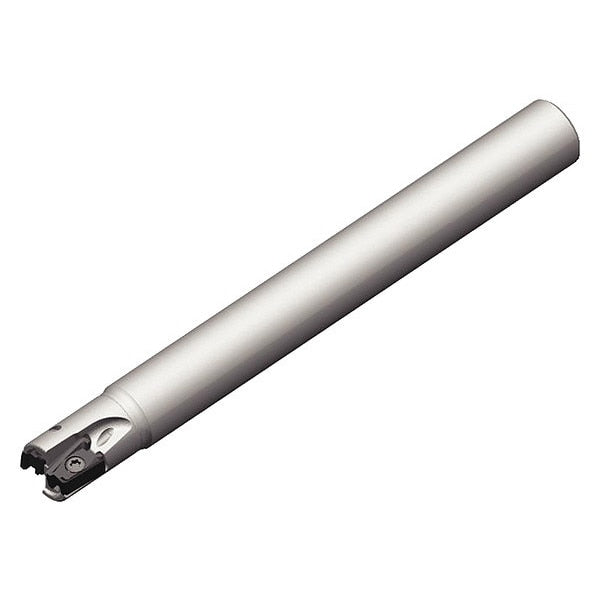

Indexable Square Shoulder End Mill, VSM490-10 Series, High Speed Steel, 0.3940 in Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Depth of Cut 0.3940 in, Shank Dia. 1-1/4 in, Overall Length 8 in, ANSI Code VSM490D150Z05C125XN10L800, Compatible Hardware Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP 9, Coolant Fed Coolant Through, Cutting Application Face Milling, Side/Shoulder Milling: Square End
graingerSKU: 274LU9, mscSKU: , zoro_no: G3792754, mongo_id: 65bbe5c33aaddbd5a9fe5cf6

Web Price

$874.99 / each

Qty

Product Details

ANSI Code VSM490D150Z05C125XN10L800

Compatible Hardware Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP 9

Coolant Fed Coolant Through

Country of Origin (subject to change) Germany

Cutting Application Face Milling, Side/Shoulder Milling: Square End

Cutting Direction Right Hand

Depth of Cut 0.3940 in

Features Best-in-Class Wall Finish in Axial Stepping-Down Jobs, Lower Cutting Forces and Real Soft Cutting Action, Perfect Fit for Taper 40 Spindles and Driven Units, Reduced Shanks and Long Versions Available

Head Projection Length 2 in

Insert Holding Type Screw

Insert Shape 90 Degrees Rectangle Mill

Insert Size 100408

Insert Style XNGU SRMM

ISO Number VSM490D150Z05C125XN10L800

Material - Machining High Speed Steel

Max. Speed 26,200 RPM

Min. Cutting Dia. 1-1/2 in

Neck Dia. 1.2280 in

Number of Coolant Holes 2

Number of Inserts 5
