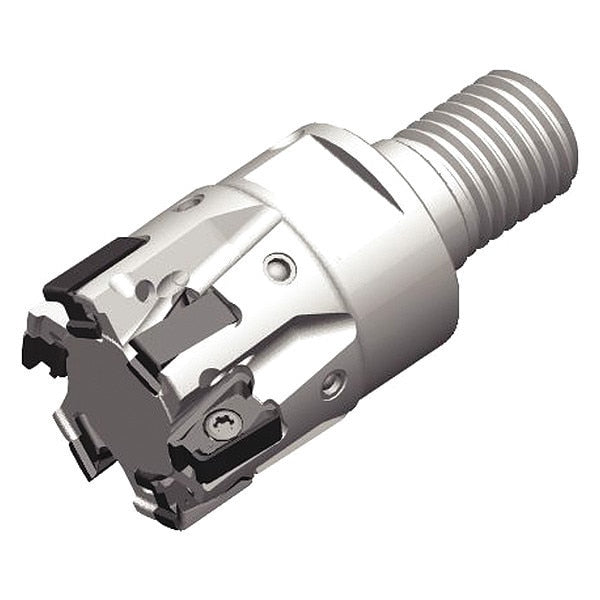

Indexable Square Shoulder End Mill, VSM490-10 Series, High Speed Steel, 10.00mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Depth of Cut 10.00mm, Shank Dia. 21.00mm, Overall Length 54.00mm, ANSI Code VSM490D025Z04M12XN10, Compatible Hardware Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP 9, Connection Size M12, Coolant Fed Coolant Through, Cutting Application Face Milling, Side/Shoulder Milling: Square End
graingerSKU: 274LZ2, mscSKU: , zoro_no: G3789990, mongo_id: 65bbe7fe22d7a989a98cf99c

Web Price

$582.49 / each

Qty

Product Details

ANSI Code VSM490D025Z04M12XN10

Compatible Hardware Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP 9

Connection Size M12

Coolant Fed Coolant Through

Country of Origin (subject to change) Germany

Cutting Application Face Milling, Side/Shoulder Milling: Square End

Cutting Direction Right Hand

Depth of Cut 10.00mm

Features Best-in-Class Wall Finish in Axial Stepping-Down Jobs, D32 Productivity Booster with Z6 Effective for HPC Cutting, Lower Cutting Forces and Real Soft Cutting Action, Perfect Fit for Taper 40 Spindles and Driven Units

Head Projection Length 32.00mm

Insert Holding Type Screw

Insert Shape 90 Degrees Rectangle Mill

Insert Size 100408

Insert Style XNGU SRMM

ISO Number VSM490D025Z04M12XN10

Material - Machining High Speed Steel

Max. Speed 34,300 RPM

Min. Cutting Dia. 25.00mm

Number of Coolant Holes 2

Number of Inserts 4

Overall Length 54.00mm
