Home / Indexable Square Shoulder End Mill, VSM490-10 Series, High Speed Steel, 10.00mm Depth of Cut

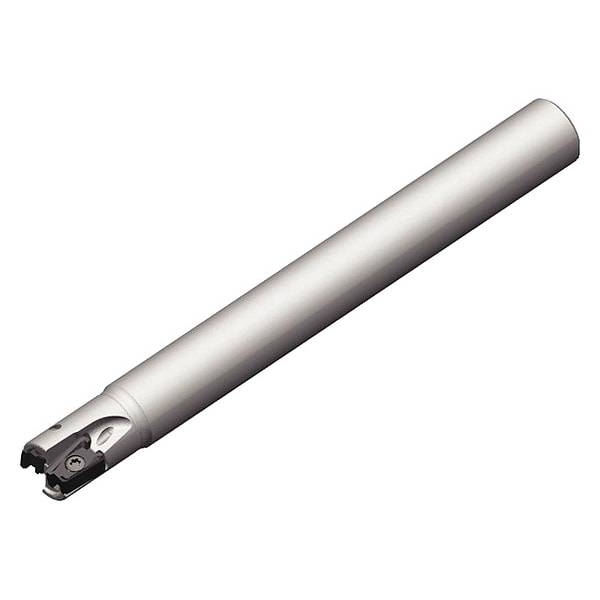

Indexable Square Shoulder End Mill, VSM490-10 Series, High Speed Steel, 10.00mm Depth of Cut

SKU
Brand Widia
Categories
Description Indexable Profiling End Mill, Depth of Cut 10.00mm, Shank Dia. 25.00mm, Overall Length 200.00mm, ANSI Code VSM490D032Z04A25XN10L200, Compatible Hardware Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP 9, Coolant Fed Coolant Through, Cutting Application Face Milling, Side/Shoulder Milling: Square End
graingerSKU: 274LY8, mscSKU: , zoro_no: G3790830, mongo_id: 65bbe6b33aaddbd5a904a494

Web Price

$768.74 / each

Qty

Product Details

ANSI Code VSM490D032Z04A25XN10L200

Compatible Hardware Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP 9

Coolant Fed Coolant Through

Country of Origin (subject to change) China

Cutting Application Face Milling, Side/Shoulder Milling: Square End

Cutting Direction Right Hand

Depth of Cut 10.00mm

Features Best-in-Class Wall Finish in Axial Stepping-Down Jobs, Lower Cutting Forces and Real Soft Cutting Action, Perfect Fit for Taper 40 Spindles and Driven Units, Reduced Shanks and Long Versions Available

Head Projection Length 32.00mm

Insert Holding Type Screw

Insert Shape 90 Degrees Rectangle Mill

Insert Size 100408

Insert Style XNGU SRMM

ISO Number VSM490D032Z04A25XN10L200

Material - Machining High Speed Steel

Max. Speed 29,200 RPM

Min. Cutting Dia. 32.00mm

Neck Dia. 24.50mm

Number of Coolant Holes 2

Number of Inserts 4
