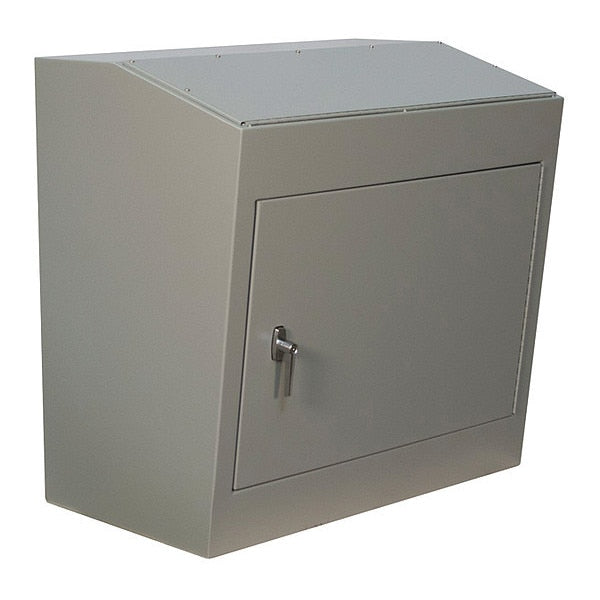

36 Console

SKU
Brand Wiegmann
Categories
Description 36 Console
graingerSKU: , mscSKU: , zoro_no: G5213936, mongo_id: 65bbe58b3aaddbd5a9fcd43d

Web Price

$4,146.24 / each

Qty

Product Details

Accessory Type 36 Console

Actual Depth 20.13 in

Actual Height 36.130 in

Actual Width 36.13 in

Application Designed to hold electrical and electronic controls and instruments. Pushbuttons, pilot lights, meters, switches, etc., can be mounted on sloping control surfaces. Interior components can be mounted on standard back panel and terminal straps. Heavy duty c

Certified Listed cULus

Color Ansi-61 Gray Textured

Construction Continuously Welded Seams

Country of Origin (subject to change) United States

Cubic Capacity 25920 cu.in

Depth 20 in

Each - Width 36.130 in

Features Fabricated from carbon steel; Seams are continuously welded and ground smooth; Removable back panel is provided with the console.; The large sloping control panel is hinged along the bottom edge.

Finish Polyester Powder

Finish Type Polyester Powder

Height 36 in

Latches Type 3-Point Keylocking Handle

Listings UL, CSA

Material Carbon Steel

Nema Rating 12

Package Quantity 1

Series WC12

Special Features Bodies and doors fabricated from 14 gauge steel. Seams are continuously welded and ground smooth. 3-point keylocking handle is provided on front, main door. Main hinged doors are flush. Large sloping control panels are hinged along the bottom edge. Control panels have captive screws which thread into sealed wells. Grounding provisions included. Door stops provided to hold control panel open. Print pocket is provided. Closed cell neoprene gasket is provided. Removable back panel included with console. Studs are welded to inside of console for mounting back panel.

Standard cULus

Sub-Category Other Accessories

Type Console Body

UL Listed Yes

Width 36.130 in
