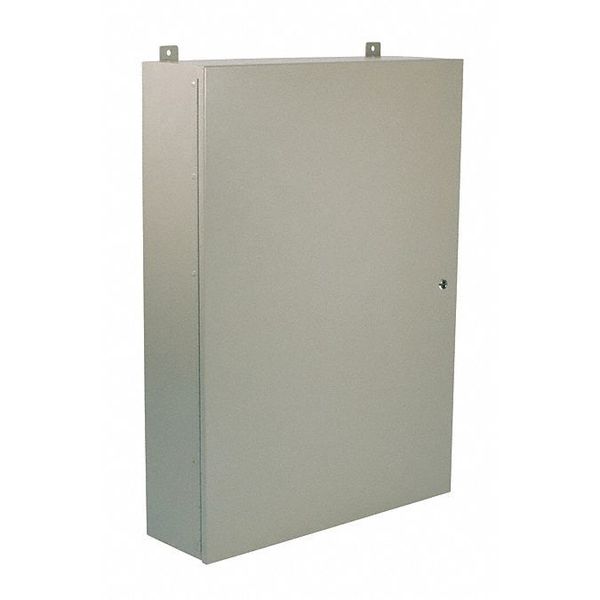

42 X 30 X 9 1/4, Large Nema 1 Hinged

SKU
Brand Wiegmann
Categories
Description 42 X 30 X 9 1/4, Large Nema 1 Hinged

Web Price

$1,106.24 / each

Qty

Product Details

Accessory Type 42 X 30 X 9 1/4, Large Nema 1 Hinged

Actual Depth 8.940 in

Application Designed for use in control and instrumentation applications in areas which do not require oil-tight and dust-tight specifications.

Certified Listed cULus

Color Ansi-61 Gray Smooth

Construction Seam and Spot Welded

Country of Origin (subject to change) United States

Cover Type Hinged Cover

Cubic Capacity 11340 cu.in

Depth 9 in

Each - Width 30.000 in

Features Bodies and doors fabricated from 14 gauge steel. Continuous hinged doors. Doors are easily removable by pulling the hinged pin. Collar studs provided for mounting optional back panels. External mounting feet provided. Grounding provisions provided. Doors are furnished standard with flushmount quarter-turn latch.

Finish Smooth

Finish Type Smooth

Height 42 in

Knockouts No

Listings UL, CSA

Material Carbon Steel

Mounting External Mounting Feet

Mounting Type External Mounting Feet

Nema Rating 1

Package Quantity 1

Standard cULus

Sub-Category Other Accessories
