Home / 15A Midget Locking Connector 2P 3W 125VAC ML-2R BK/WT

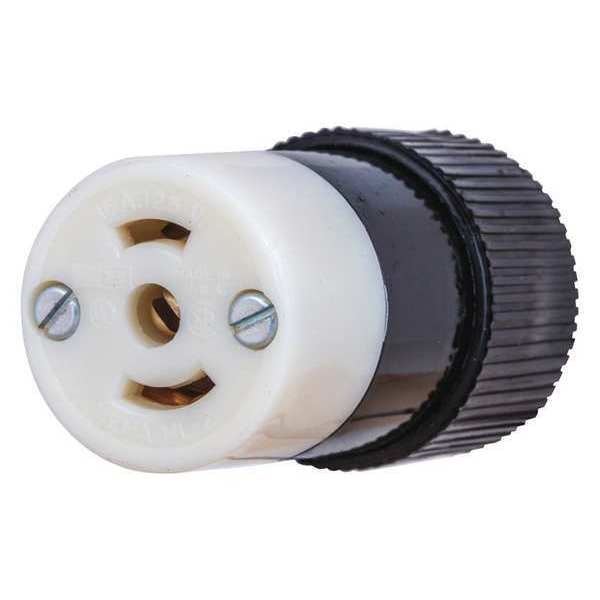

15A Midget Locking Connector 2P 3W 125VAC ML-2R BK/WT

15A Midget Locking Connector 2P 3W 125VAC ML-2R BK/WT

  • GENERIC
  • Midget Locking Connector, Connection Orientation Straight, Current Rating 15 A, Housing Color Black, White, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration ML2-15R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Shatter and Crack Resistant, Shrouded No, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, For Maximum Cable Diameter 0.625 in, For Minimum Cable Diameter 0.281 in

    graingerSKU: null, mscSKU: null, zoro_no: G4439255, mongo_id: 65bbe5b83aaddbd5a9fe0edb

Web Price
$27.74 / each

Product Details

15 A
15 A
Heavy Duty Industrial
Nylon
No Cap or Cover
Black/White
#14 AWG
Straight
Screw Terminals
0.281 in to 0.625 in
United States
15 A
Midget NEMA Locking
Indoor Dry Unless Protected By Additional Means
Smaller body size for use in tighter fit applications where larger products can't; Abuse resistant nylon housing
Nylon
Dry
0.625 in
0.281 in
Midget Locking Plug or Flanged Inlet
Grounded
2.15 in
Black, White
Nylon
Insulated Body
IP20
15A Midget Female Connector
15A Midget Female Connector
1.25 in
Industrial
Composite
Cord Mounted
75 Degrees C
12 AWG
Yes
-40 Degrees C
18 AWG
ML2-15
ML-2R
ML2-15R
3-Wire Grounding
2
3
1.25 in
1
Single
Shatter and Crack Resistant
No
CSA Certified, UL Listed
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Connector Body
125V AC
125V AC
1.25 in
Screw Terminals
#18 AWG to #12 AWG
Standard
