Home / 20A Duplex Receptacle 125VAC 5-20R WH

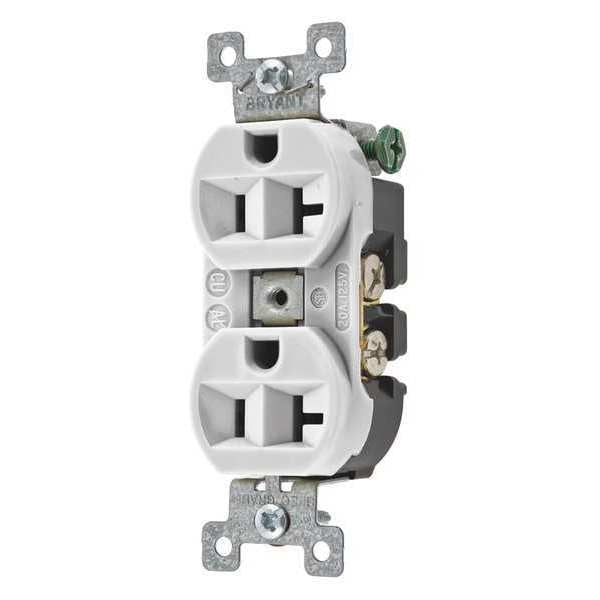

20A Duplex Receptacle 125VAC 5-20R WH

20A Duplex Receptacle 125VAC 5-20R WH

  • GENERIC
  • Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color White, Housing Material Composite, Thermoplastic/Composite, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Corrosion Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL E2186
Web Price
$9.19 / each
Qty

Product Details

Standard Protection
Standard Protection
No
20 A
20
20
20 A
Hubbell-Pro Extra Heavy Duty
Industrial
White
White
Straight
Back and Side Wired
Yes
United States
No Cover
20 A
Standard Sized Product
Indoor Dry unless protected by additional means
2.7 in
Slender/compact design; Finder Groove Face; Triple wipe contacts
Not Applicable
Not Applicable
Non-Flanged
Not Applicable
Indoor
No
Federal Specification
Grounded
0.92 in
1 hp
White
Composite, Thermoplastic/Composite
1 hp
Feed Through
Mounting Hardware
Yes
UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
Receptacle
Traditional Duplex
Corrosion Resistant
3.28 in
Commercial, Industrial
Nylon
Screw Mounting
167 Degrees F
10 AWG
-40 Degrees F
12 AWG
3.3 in
Flush
Flush
Flush
5-20
5-20R
5-20R
5-20R
1
2
2 Pole / 3 Wire
3
Duplex
Standard Duplex
0.9 in
1
Single
Yes
No
Corrosion Resistant - Corrosion Resistant - 20 A
Duplex
Corrosion Resistant
Hubbell-PRO
Standard Sized Product
Corrosion resistant
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL E2186
Finder Groove Face
Duplex Receptacles
No
No
No
Maximum continuous 75°C; minimum -40°C (w/o impact)
Standard Duplex
125VAC
125V AC
125V AC
1875 W
No
No
1.38 in
Screw Terminals
Screw Terminals
#12 AWG to #10 AWG
Back, Side
Back and Side
