Home / 30A Locking Plug 3P 4W 125/250VAC L14-30P BK/WT

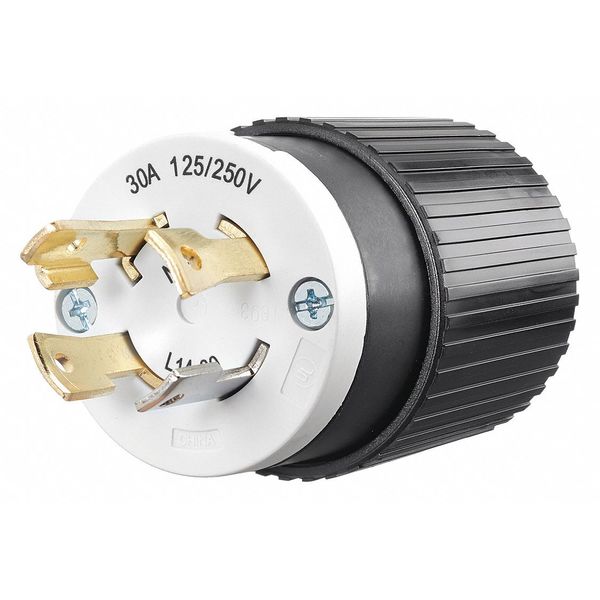

30A Locking Plug 3P 4W 125/250VAC L14-30P BK/WT

30A Locking Plug 3P 4W 125/250VAC L14-30P BK/WT

  • GENERIC
  • Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Composite, NEMA Plug Configuration L14-30P, Number of Blades 4, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.89 in, For Maximum Cable Diameter 1.15 in, For Minimum Cable Diameter 0.465 in, Grade Industrial
Web Price
$45.13 / each
Qty

Product Details

30 A
30
30
No
Extra Heavy Duty Industrial
2.13 in
Black/White
Black/White
Straight
Screw Terminals
0.465 in to 1.150 in
No
China
30 A
Standard Sized
Indoor Dry Unless Protected By Additional Means
1.89 in
Hand grip features wide-rib, non-slip design; Configuration-specific plug face surrounds blades to prevent infiltration of contaminants; Captive, combination Slot/Phillips assembly screws; Double wall construction for extra durability; Neutral blade is nickel-plated for easy identification; Internal “self-centering†Triple Gripper® cord grip with “radius teeth†design provides secure cord retention
Dry
Indoor
1.15 in
0.465 in
Industrial
Industrial
Grounded
2.86 in
2 hp
Black, White
Composite
2.0
IP20
Locking Plug
30A Triple Gripper Nylon Plug
2.13in
Industrial
Nylon
Cord Mounted
8 AWG
18 AWG
L14-30
L14-30P
L14-30P
L14-30P
4
3
4
2.13 in
2.13 in
1
Single
Yes
Chemical Resistant, Impact Resistant
No
Non-Shrouded
NEMA WD-1, NEMA WD-5, UL 498
Internal Cord Clamp
Plugs
125/250VAC
125/250V AC
125/250V AC
2.13 in
Screw Terminals
#18 AWG to #8 AWG
Standard
