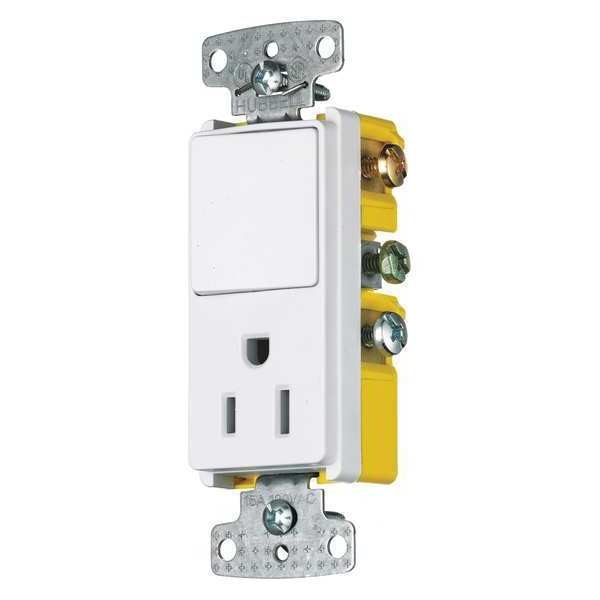

Combination Device, Switch/Receptacle, 15A

SKU
Brand GENERIC
Categories
Description Combination Device, Current Rating 15 A, Device Type Switch and Outlet, Housing Color White, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Poles 1, Switch Style Rocker, Switch Type Single Pole, Voltage Rating 125V AC, Wiring Method Back, Side, Grounding Grounded, Horsepower Rating 1 hp, Includes Mounting Hardware Yes, Mount Hole Center-to-Center Height 3.27 in, Mounting Location Wall, Number of Gangs 1, Standards CSA Certified, UL Listed, Wire Connection Type Screw Terminals
graingerSKU: null, mscSKU: null, zoro_no: G4844275, mongo_id: 65bbe5b83aaddbd5a9fe0ed5

Web Price

$18.09 / each

Qty

Product Details

Action Snap Switch

Actuator Rocker

Amperage Rating 15 A

Amps 15 A

Application Residential

Color White

Connectivity Side Wired

Contact Configuration Two Position

Contact Rating 15A

Country of Origin (subject to change) China

Current Rating 15 A

Description/Special Features Decorator, Simple Pole Switch

Device Type Switch and Outlet

Display Size Standard Size

Environmental Conditions Indoor Dry Unless Protected By Additional Means

Features Smooth, quiet rocker; Low profile, less than 1 inch deep; Self-grounding feature is standard

For Location Indoor

Grounding Grounded

Horsepower Rating 1 hp

Housing Color White

HP_ 1 hp

Includes Mounting Hardware Yes

Industry Standard(s) CSA CertifiedUL Listed E3896

Item Type Decorator Switch and Receptacle Combo Devices

Material - Mounting Hardware Mounting Screws

Maximum Operating Temperature 60 Degrees C

Maximum Wire Size 12 AWG

Minimum Operating Temperature -20 Degrees C

Minimum Wire Size 14 AWG

Mount Hole Center-to-Center Height 3.27 in

Mount Type Flush

NEMA Configuration 5-15

NEMA Receptacle Configuration 5-15R

Number of Gangs 1

Number of Poles 1

Operating Temperature Max Continuous- 60 Degrees C, Minimum- -20 Without Impact

Overall Depth 0.97 in

Package Quantity 1

Performance Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minuteElectrical - Endurance - 30,000 cycles minimumElectrical - Max. working voltage - 120VElectrical - Overload - 1.5 times ratingEnvironmental - Flammability - UL V0Environmental - Operating temperatures - Maximum continuous 60ÃÂÃÂ°Cminimum -20ÃÂÃÂ°C (without impact)Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire onlypush wire: #14 AWG solid copper wire only

Standards CSA Certified, UL Listed

Switch Style Rocker

Switch Type Single Pole

Type Rocker

Voltage 125V AC

Voltage Rating 125V AC

Wattage 1875

Wire Connection Type Screw Terminals

Wire Connection Types Screw Terminals

Wiring Combination Switch/Receptacle

Wiring Method Back, Side
