Fastener Tech Sheet, UNC/UNF Threads

SKU
Brand GENERIC
Categories
Description Fastener Technical Data Sheet, Language English, Product Type Technical Data Sheet, Subject Matter Hot Sheet F14, Material Laminated Paper, Height 11 in, Width 8 1/2 in, Includes Tables from Black Book Pages 221, 222, 224-226, 228, Number of Sheets Included 1, For Use With Fastener Reference, Fastener Tech Information, Threaded/Non-Threaded Fasteners
graingerSKU: , mscSKU: , zoro_no: G0840533, mongo_id: 65bbea0522d7a989a998cba8

Web Price

$4.94 / each

Qty

Product Details

Country of Origin (subject to change) China

Depth 1/64

Depth (In.) 0.015 in

For Use With Fastener Reference, Fastener Tech Information, Threaded/Non-Threaded Fasteners

Height 11 in

Height (In.) 11 in

Includes Tables from Black Book Pages 221, 222, 224-226, 228

Language English

Material Laminated Paper

Number of Pages 1

Number of Sheets Included 1

Package Quantity 1

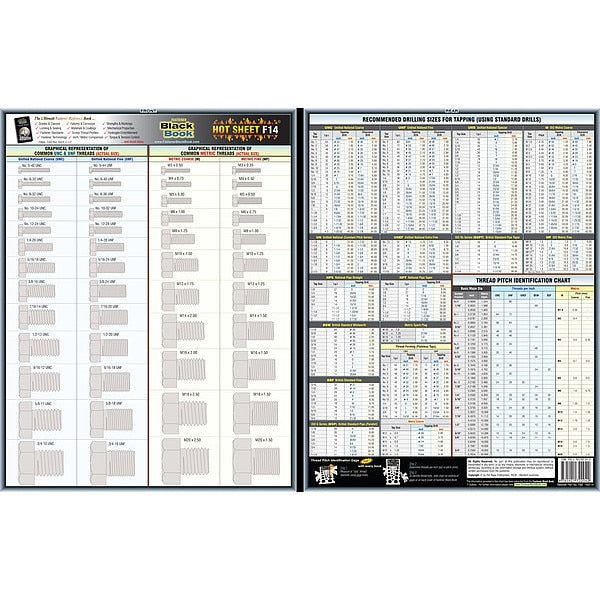

Provides Graphical Representation Of Common Metric Threads (Actual Size), Graphical Representation Of Common UNC & UNF Threads (Actual Size), Recommended Drilling Sizes For Tapping (Using Standard Drills), Thread Pitch Identification Chart

Subject Matter Hot Sheet F14

Type Hot Sheet F14

Width 8 1/2 in

Width (In.) 8 1/2 in
