Home / Flexible Hose Assy, 3/4 In, 36 In L, EPDM

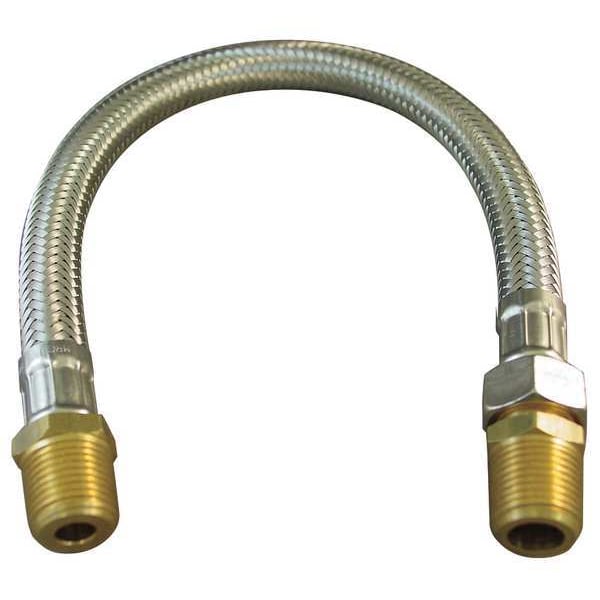

Flexible Hose Assy, 3/4 In, 36 In L, EPDM

SKU
Brand GENERIC
Categories
Description Flexible Hose Assembly, Hose Inside Dia. 3/4 in, Hose Length 36 in, Hose Tube Material EPDM, Hose Cover Material EPDM, Max. Working Pressure @ 70 F 200 psi, Temp. Range 212 Degrees F, Standards UL-94, Hose Fitting A Material Brass, Hose Fitting A Type MNPT, Hose Fitting B Type MNPT, Hose Fitting A Size 3/4 in, Hose Fitting B Size 3/4 in, Hose Configuration Coupled Assembly, For Use With Hot Water Hose
graingerSKU: 4DXP4, mscSKU: , zoro_no: G1708576, mongo_id: 65bbe8a222d7a989a9907982

Web Price

$93.21 / each

Qty

Product Details

Braid Material Stainless steel

Compatible Chemicals Air, Fresh Water

Country of Origin (subject to change) United States

Dia. (In.) 3/4

Dynamic Min. Bend Radius (In.) 5

Fitting Type MNPT x MNPT Swivel

For Media Type Air, Water

For Use With Hot Water Hose

Hose Configuration Coupled Assembly

Hose Cover Material EPDM

Hose Fitting A Material Brass

Hose Fitting A Size 3/4 in

Hose Fitting A Type MNPT

Hose Fitting B Size 3/4 in

Hose Fitting B Type MNPT

Hose Fittings Brass 3/4 in MNPT x 3/4 in MNPT

Hose Inside Dia. 3/4 in

Hose Length 36 in

Hose Material EPDM

Hose Tube Material EPDM

Length (In.) 36

Max. Temp. (F) 212

Max. Working Pressure (PSI) 300

Max. Working Pressure @ 70 F 200 psi

Not Recommended Chemicals 0, Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Antifreeze (Coolant), Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Ethyl (Ethanol), Formic Acid, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Methyl (Methanol), Methyl Ethyl Ketone (MEK), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%)

Package Quantity 1

Pipe Size (In.) 3/4

Standards UL-94

Static Min. Bend Radius (In.) 5

Temp. Range 212 Degrees F

Type Braided
