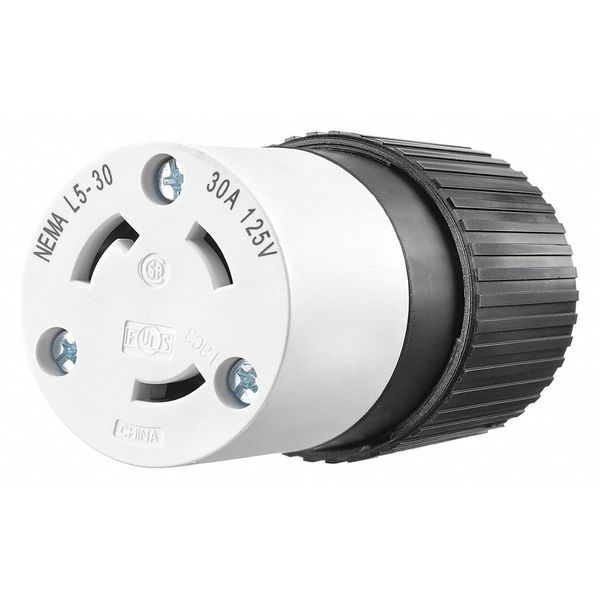

Locking Connector Black/White 125VAC 30A L5-30R

Locking Connector Black/White 125VAC 30A L5-30R

  • GENERIC
  • Locking Connector, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Composite, IP Rating IP20, NEMA Receptacle Configuration L5-30R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Shrouded No, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Grade Industrial, Grounding Grounded, Market Industrial

    graingerSKU: null, mscSKU: null, zoro_no: G4439891, mongo_id: 65bbe5b83aaddbd5a9fe0ed6

Web Price
$65.34 / each
Qty

Product Details

30 A
30
30
No
Heavy Duty Industrial
No Cap or Cover
Black/White
Black/White
#12 AWG to #8 AWG
Straight
Screw Terminals
0.300 in to 0.950 in
No
China
30 A
Standard Sized Product
Indoor Dry Unless Protected By Additional Means
Face and body feature alignment keys for easy assembly; Amperage, voltage and NEMA configuration imprinted on face for easy identification; Impact/chemical resistant, toughened nylon construction; Internal “self-centering†Triple Gripper® cord grip with “radius teeth†design provides secure cord retention
Dry
Indoor
Industrial
Industrial
Grounded
3.90 in
Black, White
Composite
Insulated Body
IP20
Locking Connector
30A Triple Gripper Nylon Connector
2.13 in
Industrial
Nylon
Cord Mounted
75 Degrees C
8 AWG
No
-40 Degrees C
18 AWG
L5-30
L5-30R
L5-30R
L5-30R
3-Wire Grounding
2
3
2.13 in
1
Single
Yes
No
No
Chemical Resistant, Impact Resistant
No
Non-Shrouded
CSA Certified, UL Listed
Internal Cord Clamp
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Connector Body
125VAC
125V AC
125V AC
2.13 in
Screw Terminals
#18 AWG to #8 AWG
Standard
