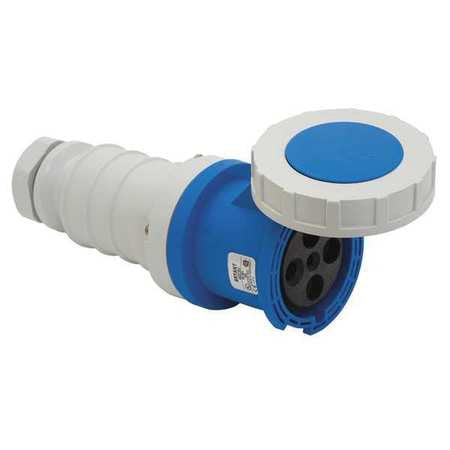

Pin and Sleeve Connector, Blue, 10.0 HP

Pin and Sleeve Connector, Blue, 10.0 HP

  • GENERIC
  • Watertight Pin and Sleeve Connector, Current Rating 100/125 A, Grounding Style IEC, Horsepower Rating 10 hp, Housing Color Blue, IP Rating IP67, Number of Poles 3, Number of Wires 4, Phase Three, Resistance Properties Corrosion Resistant, Impact Resistant, Watertight, Switch Rated No, Voltage Rating 200 to 250V AC, Cap Type Spring-Loaded Cap, Connection Orientation Straight, For Maximum Cable Diameter 1.94 in, For Minimum Cable Diameter 0.9 in, Grounding Grounded

    graingerSKU: 49YX80, mscSKU: , zoro_no: G4571589, mongo_id: 65bbe70e3aaddbd5a9070701

Web Price
$687.50 / each

Product Details

100/125 A
100
100
High Ampacity Connections
Nylon
Nylon
Spring-Loaded Cap
Blue
Blue
Straight
Germany
100/125 A
Withstand 3000V AC
IP67
External Strain Relief, Glandless Water Ingress Protection, Impact and Corrosion Resistant Insulated Non-Metallic Housing, Sequential Contact Engagement to Prevent a Momentary Over-Voltage
1.94 in
0.9 in
Grounded
IEC
Not Rated
10 hp
Blue
PBT
Non-Metallic
10 hp
All constructions are UL Listed & cUL Listed, FileE14633, UL1686 Standard for Pin & Sleeve Configurations, VDE, CE
IP67
Insulated Body
IP67
Watertight Pin and Sleeve Connector
Industrial
PBT
75 Degrees C
1 AWG
-40 Degrees C
4 AWG
Cord Mounted
Not Rated
Non-NEMA
3
4
13.57 in
1
Three
3
UL1686
UL1686
No
No
Corrosion Resistant, Impact Resistant, Watertight
No
Watertight IP67
Yes
Standard
CE Certified, cUL E14633, UL 1686, UL Listed, VDE
No
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Connector Body
HB
250VAC
600 VAC
250V AC
200 to 250V AC
Screw Terminals
#4 AWG to #1 AWG
