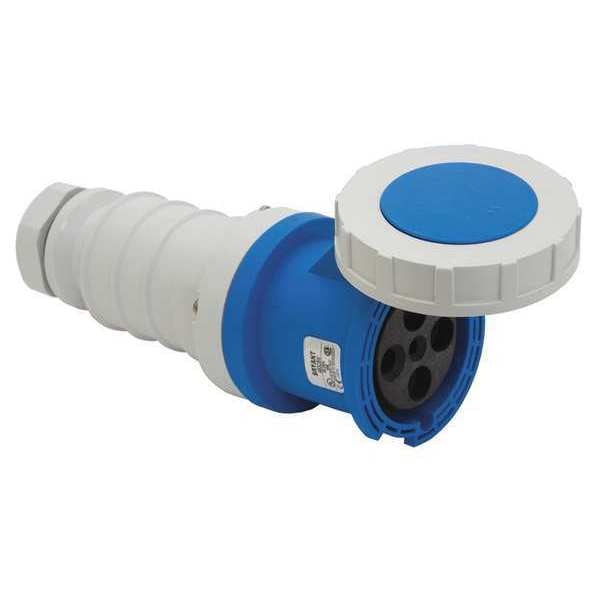

Pin and Sleeve Connector, Blue, 120/208VAC

Pin and Sleeve Connector, Blue, 120/208VAC

  • GENERIC
  • Watertight Pin and Sleeve Connector, Current Rating 100 A, Grounding Style IEC, Horsepower Rating 10 hp, Housing Color Blue, IP Rating IP67, Number of Poles 4, Number of Wires 5, Phase Three, Resistance Properties Watertight, Switch Rated No, Voltage Rating 120/208V AC, Cap Type Spring-Loaded Cap, Connection Orientation Straight, For Maximum Cable Diameter 1.94 in, For Minimum Cable Diameter 1.06 in, Grounding Grounded, Hazardous Location Specification Not Rated, Housing Material Composite

    graingerSKU: 49YX86, mscSKU: , zoro_no: G4571561, mongo_id: 65bbe81a9a749db82277519c

Web Price
$740.63 / each
Qty

Product Details

100/125 A
100
100
High Ampacity Connections
Nylon
Nylon
Spring-Loaded Cap
Blue
Blue
Straight
Germany
100 A
Withstand 3000V AC
IP67
Sleet Resistant
1.94 in
1.06 in
Grounded
IEC
Not Rated
10 hp
Blue
Composite
Non-Metallic
10 hp
All constructions are UL Listed & cUL Listed, FileE14633, UL1686 Standard for Pin & Sleeve Configurations, VDE, CE
IP67
Insulated Body
IP67
Watertight Pin and Sleeve Connector
Industrial
PBT
75 Degrees C
1/0 AWG
-40 Degrees C
3 AWG
Cord Mounted
Not Rated
Non-NEMA
4
5
13.57 in
1
Three
3Y
IEC 309
IEC 309
No
No
Watertight
No
Watertight IP67
Yes
Standard
IEC 309-1, IEC 309-2, UL 498
No
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Connector Body
Not Rated
120/208VAC
600 VAC
120/208V AC
120/208V AC
Screw Terminals
#4 AWG to #1 AWG
