Home / Pin and Sleeve connector, Red, 7.5 HP

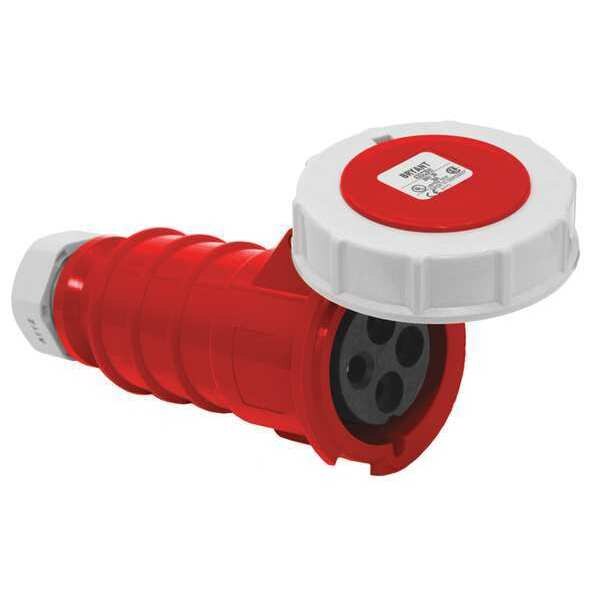

Pin and Sleeve connector, Red, 7.5 HP

Pin and Sleeve connector, Red, 7.5 HP

  • GENERIC
  • Watertight Pin and Sleeve Connector, Current Rating 30 A, Grounding Style IEC, Horsepower Rating 7 1/2 hp, Housing Color Red, IP Rating IP67, Number of Poles 3, Number of Wires 4, Phase Three, Resistance Properties Watertight, Switch Rated No, Voltage Rating 480V AC, Cap Type Spring-Loaded Cap, Connection Orientation Straight, For Maximum Cable Diameter 1.25 in, For Minimum Cable Diameter 0.5 in, Grounding Grounded, Hazardous Location Specification Not Rated, Housing Material Composite

    graingerSKU: 49YX82, mscSKU: , zoro_no: G4439200, mongo_id: 65bbe7a63aaddbd5a90a9d65

Web Price
$293.75 / each

Product Details

30 A
30
30
High Ampacity Connections
Nylon
Nylon
Spring-Loaded Cap
Red
Red
Straight
Germany
30 A
Withstand 3000V AC
IP67
Sleet Resistant
1.25 in
0.5 in
Grounded
IEC
Not Rated
7 1/2 hp
Red
Composite
Non-Metallic
7 1/2 hp
All constructions are UL Listed & cUL Listed, FileE14633, UL1686 Standard for Pin & Sleeve Configurations, CE
IP67
Insulated Body
IP67
Watertight Pin and Sleeve Connector
Industrial
PBT
75 Degrees C
8 AWG
-40 Degrees C
12 AWG
Cord Mounted
Not Rated
Non-NEMA
3
4
9.05 in
1
Three
3
IEC 309
IEC 309
No
No
Watertight
No
Watertight IP67
Yes
Standard
IEC 309-1, IEC 309-2, UL 498
No
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Connector Body
Not Rated
480VAC
600 VAC
480V AC
480V AC
Screw Terminals
#10 AWG to #8 AWG
