Home / Pin and Sleeve Plug, Orange, 480VAC

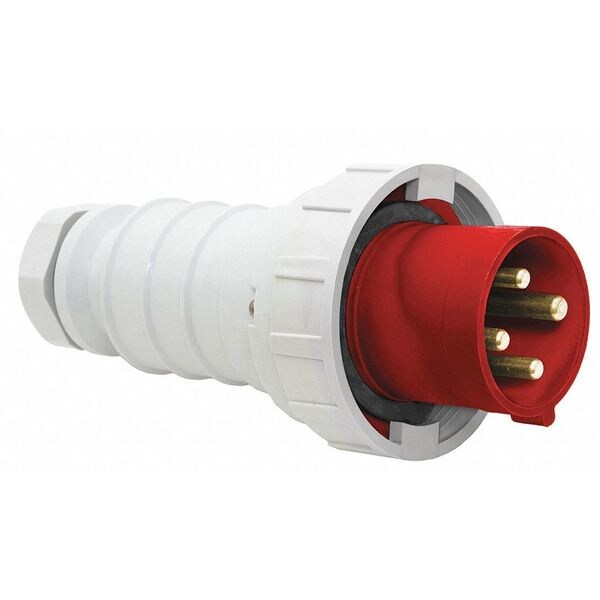

Pin and Sleeve Plug, Orange, 480VAC

Pin and Sleeve Plug, Orange, 480VAC

  • GENERIC
  • Pin and Sleeve Plug, Current Rating 100 A, Housing Color Red, IP Rating IP67, Number of Poles 3, Number of Wires 4, Phase Three, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, Connection Orientation Straight, For Maximum Cable Diameter 1.68 in, For Minimum Cable Diameter 0.9 in, Grounding Grounded, Grounding Style IEC, Housing Material Polybutylene Terephthalate, Maximum Wire Size 1/0 AWG, Minimum Wire Size 3 AWG, NEMA Enclosure Rating Not Rated

    graingerSKU: 49YX90, mscSKU: , zoro_no: G4439167, mongo_id: 65bbe87122d7a989a98f5c75

Web Price
$556.24 / each
Qty

Product Details

100 A
100
100
High Ampacity Connections
Nylon
Nylon
No Cap or Cover
Red
Red
Straight
Germany
100 A
Withstand 3000V AC
IP67
Watertight
1.68 in
0.9 in
Grounded
IEC
Red
Non-Metallic
All constructions are UL Listed & cUL Listed, FileE14633, UL1686 Standard for Pin & Sleeve Configurations, CE
IP67
Insulated Body
IP67
Watertight Pin and Sleeve Plug
PBT
75 Degrees C
1/0 AWG
-40 Degrees C
3 AWG
Cord Mounted
Not Rated
Non-NEMA
3
4
3.21 in
12.63 in
1
Three
3
CSA Certifications, IEC 60309, UL Listed
IEC 60309
No
Impact Resistant, Moisture Resistant, Watertight
No
Watertight IP67
Yes
Standard
CSA Certified C22.2 No. 182.1, IEC 60309-1, UL E146032
No
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Plug
HB
480VAC
600 VAC
480V AC
480V AC
Screw Terminals
#4 AWG to #1 AWG
