Home / Pin and Sleeve Receptacle, 5 HP, 480VAC

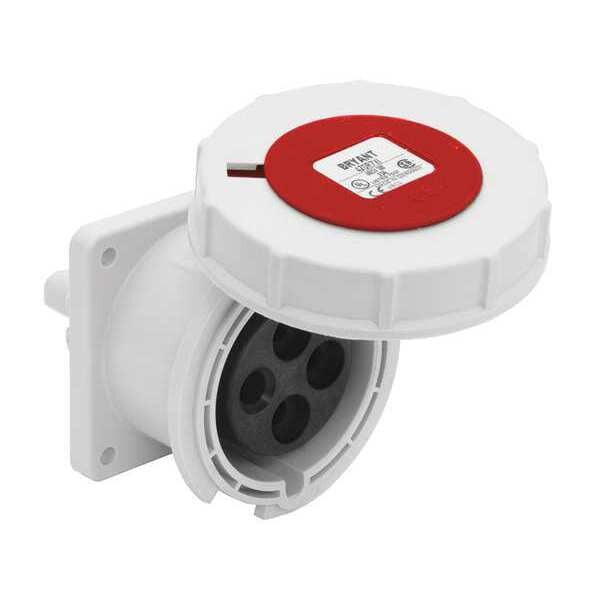

Pin and Sleeve Receptacle, 5 HP, 480VAC

Pin and Sleeve Receptacle, 5 HP, 480VAC

  • GENERIC
  • Watertight Pin and Sleeve Receptacle, Current Rating 20 A, Flange Type Flanged, Grounding Style IEC, IP Rating IP67, NEMA Enclosure Rating Not Rated, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Three, Shrouded Yes, Voltage Rating 480V AC, Cap Type Spring-Loaded Cap, Connection Orientation Straight, Grounding Grounded, Horsepower Rating 5 hp, Housing Color Red, Housing Material Composite, Market Industrial, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG

    graingerSKU: 49YY05, mscSKU: , zoro_no: G4439088, mongo_id: 65bbe89c22d7a989a9904135

Web Price
$182.49 / each
Qty

Product Details

20 A
20
20
High Ampacity Connections
Nylon
Nylon
Spring-Loaded Cap
Red
Red
Straight
Germany
20 A
Withstand 3000V AC
IP67
Neoprene Sealing Glands
Flanged
Grounded
IEC
5 hp
Red
Composite
Non-Metallic
5 hp
Straight
All constructions are UL Listed & cUL Listed, FileE14632, UL1686 Standard for Pin & Sleeve Configurations, CE
IP67
Insulated Body
IP67
Watertight Pin and Sleeve Receptacle
Industrial
PBT
10 AWG
14 AWG
Receptacle Only
Screw Mount
Not Rated
Non-NEMA
1
3
3 Pole / 4 Wire
4
1
Three
3
No
No
Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Shatter and Crack Resistant, Warp Resistant, Watertight
No
Watertight IP67
Yes
Standard
IEC
No
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Receptacle
HB
480VAC
600 VAC
480V AC
480V AC
Screw Terminals
#14 AWG to #12 AWG
