Home / Receptacle, 20 A Amps, 125V AC, Flush Mount, Single Outlet, 5-20R, White

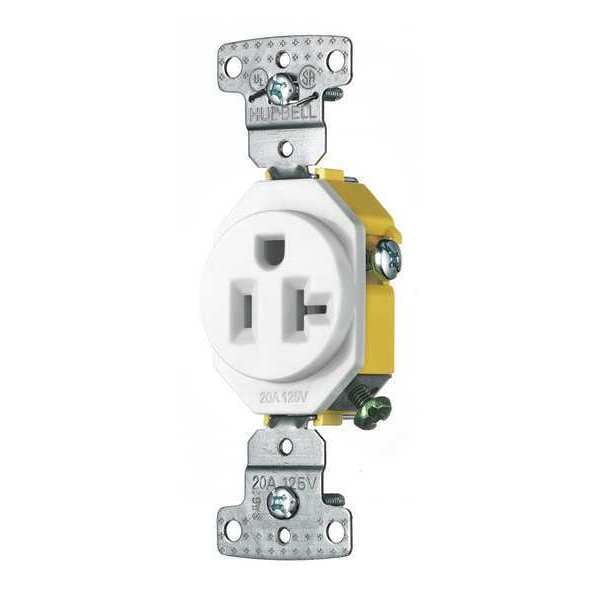

Receptacle, 20 A Amps, 125V AC, Flush Mount, Single Outlet, 5-20R, White

SKU
Brand GENERIC
Categories
Description Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color White, Housing Material Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Tamper Resistant, Standards CSA Certified, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Side, AFCI No
graingerSKU: , mscSKU: , zoro_no: G4845018, mongo_id: 65bbe8bc22d7a989a9912605

Web Price

$6.94 / each

Qty

Product Details

Additional Electrical Protection Standard Protection

Additional Electrical Protections Standard Protection

AFCI No

Amperage Rating 20 A

Amps 20

Amps - Plugs and Receptacles 20 A

Application Residential Receptacles

Application Environment General Purpose

Color White

Color - Plugs and Receptacles White

Connection Orientation Straight

Connectivity Side Wired

Corrosion Resistant Yes

Country of Origin (subject to change) China

Cover Type No Cover

Current Rating 20 A

Display Size Standard Sized Product

Environmental Conditions Indoor Dry Unless Protected By Additional Means

Face Plate Height 0.9 in

Features Smooth indented face appearance; Multiple-drive Slot/Phillips/Robertson head screws; Tough thermoplastic ultrasonically welded cover and base

Flange Diameter Not Applicable

Flange Height Not Applicable

Flange Type Non-Flanged

Flange Width Not Applicable

For Location Indoor

GFCI No

Grade General Use

Grounding Grounded

Horsepower Rating 1 hp

Housing Color White

Housing Material Thermoplastic

HP_ 1 hp

Includes Mounting Hardware

Includes Mounting Hardware Yes

Item - Plugs and Receptacles Receptacle

Item Type Single

Key Resistance Properties Tamper Resistant

Market Residential

Material Nylon

Material - Mounting Hardware Screw Mounting

Maximum Wire Size 12 AWG

Minimum Wire Size 14 AWG

Mount Hole Center-to-Center Height 3.3 in

Mount Type Flush

Mounting Type Flush

Mounting Type - Plugs and Receptacles Flush

NEMA Configuration 5-20

Nema Rating 5-20R

NEMA Receptacle Configuration 5-20R

NEMA Receptacle Configuration - Plugs and Receptacles 5-20R

Number of Gangs 1

Number of Poles 2

Number of Poles & Wires 2 Pole / 3 Wire

Number of Wires 3

Outlet Type Single

Outlet Type - Plugs and Receptacles Single

Overall Depth 1.4 in

Package Quantity 1

Performance Environmental - Operating temperature - -20ÃÂÃÂ°C to 60ÃÂÃÂ°CMechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only

Phase Single

Polarized Yes

Power Indicator No

Primary Resistance Properties Tamper Resistant - Tamper Resistant - 20 A

Receptacle Type Single

Resistance Properties Tamper Resistant

Special Features Corrosion resistant

Standards CSA Certified, UL Listed

Sub-Category Single Receptacles

Surge Protection No

Surge Suppression No

Tamper Resistant No
