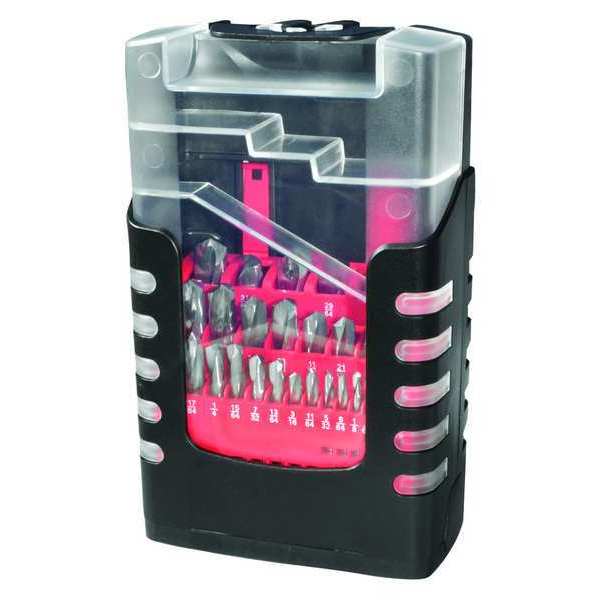

Screw Machine Drill Bit Set, TiAlN

SKU
Brand GENERIC
Categories
Description Screw Machine Drill Bit Set, Number of Drill Bits 24, 135 Degrees Drill Bit Point Angle, Carbide, AlTiN, Drill Bit Sizes Included 1.00 mm, 1.50 mm, 10.00 mm, 10.50 mm, 11.00 mm, 11.50 mm, 12.00 mm, 12.50 mm, 2.00 mm, 2.50 mm, 3.00 mm, 3.50 mm, 4.00 mm, 4.50 mm, 5.00 mm, 5.50 mm, 6.00 mm, 6.50 mm, 7.00 mm, 7.50 mm, 8.00 mm, 8.50 mm, 9.00 mm, 9.50 mm, Metric, Drill Bit Point Type 4 Facet Point
graingerSKU: 45YJ59, mscSKU: , zoro_no: G4337271, mongo_id: 65bbe7ca9a749db822758d5e

Web Price

$1,298.24 / each

Product Details

Application Metalworking

Coolant Fed Coolant Through

Coolant Through No

Country of Origin (subject to change) United States

Cutting Direction Right Hand

Decimal Equivalent 0.0394, 0.0591, 0.0787, 0.0984, 0.1181, 0.1378, 0.1575, 0.1772, 0.1969, 0.2165, 0.2362, 0.2559, 0.2756, 0.2953, 0.3150, 0.3346, 0.3543, 0.3740, 0.3937, 0.4134, 0.4331, 0.4528, 0.4724, 0.4921

Drill Bit Case Type Box

Drill Bit Dimension Type Metric

Drill Bit Finish TiAlN

Drill Bit Grouping Drill Bit Set

Drill Bit Material Solid Carbide

Drill Bit Point Angle 135 Degrees

Drill Bit Point Type 4 Facet Point

Drill Bit Size 1.0mm-12.50mm by 0.5mm

Drill Bit Sizes Included 10.00 mm, 1.00 mm, 10.50 mm, 11.00 mm, 11.50 mm, 12.00 mm, 12.50 mm, 1.50 mm, 2.00 mm, 2.50 mm, 3.00 mm, 3.50 mm, 4.00 mm, 4.50 mm, 5.00 mm, 5.50 mm, 6.00 mm, 6.50 mm, 7.00 mm, 7.50 mm, 8.00 mm, 8.50 mm, 9.00 mm

Drill Diameter Tolerance +0.0000 in /-0.0005 in

Drill Length Class Screw Machine Length

Finish - Machining AlTiN

Flute Length 13mm, 13mm, 19mm, 21mm, 22mm, 24mm, 27mm, 29mm, 30mm, 32mm, 33mm, 35mm, 38mm, 40mm, 41mm, 43mm, 45mm, 46mm, 48mm, 51mm, 51mm, 52mm, 54mm, 56mm

Flute Type Spiral

Grade C2 Sub-Micron Solid Carbide

Includes 1.0mm Screw Machine Drill, 1.5mm Screw Machine Drill, 10.0mm Screw Machine Drill, 10.5mm Screw Machine Drill, 11.0mm Screw Machine Drill, 11.5mm Screw Machine Drill, 12.0mm Screw Machine Drill, 12.5mm Screw Machine Drill, 2.0mm Screw Machine Drill, 2.5mm Screw Machine Drill, 3.0mm Screw Machine Drill, 3.5mm Screw Machine Drill, 4.0mm Screw Machine Drill, 4.5mm Screw Machine Drill, 5.0mm Screw Machine Drill, 5.5mm Screw Machine Drill, 6.0mm Screw Machine Drill, 6.5mm Screw Machine Drill, 7.0mm Screw Machine Drill, 7.5mm Screw Machine Drill, 8.0mm Screw Machine Drill, 8.5mm Screw Machine Drill, 9.0mm Screw Machine Drill, 9.5mm Screw Machine Drill

Largest Drill Bit Size 12.50 mm

List Number 460

Material - Machining Carbide

Material Grade - Machining C2

Measurement System Metric

Number of Drill Bits 24

Number of Flutes 2

Overall Length 38mm, 38mm, 45mm, 46mm, 48mm, 49mm, 54mm, 56mm, 57mm, 60mm, 62mm, 64mm, 68mm, 70mm, 72mm, 76mm, 78mm, 79mm, 83mm, 86mm, 86mm, 88mm, 92mm, 94mm

Package Quantity 1

Point Type Four Facet Point

Primary Material Application All Materials

Primary Material Application ISO Code H, K, M, P, S

Shank Dia. 1.00mm, 1.50mm, 2.00mm, 2.50mm, 3.00mm, 3.50mm, 4.00mm, 4.50mm, 5.00mm, 5.50mm, 6.00mm, 6.50mm, 7.00mm, 7.50mm, 8.00mm, 8.50mm, 9.00mm, 9.50mm, 10.00mm, 10.50mm, 11.00mm, 11.50mm, 12.00mm, 12.50mm

Shank Type Straight

Shank Type - Machining Straight

Sizes Included 1.00mm, 1.50mm, 2.00mm, 2.50mm, 3.00mm, 3.50mm, 4.00mm, 4.50mm, 5.00mm, 5.50mm, 6.00mm, 6.50mm, 7.00mm, 7.50mm, 8.00mm, 8.50mm, 9.00mm, 9.50mm, 10.00mm, 10.50mm, 11.00mm, 11.50mm, 12.00mm,, 12.50mm

Smallest Drill Bit Size 1.00 mm

Spiral Direction Right Hand

Standards Not Rated

Web Construction Split

Web Thinning Thinned
