Home / Screw Machine Drill Set, TiAlN

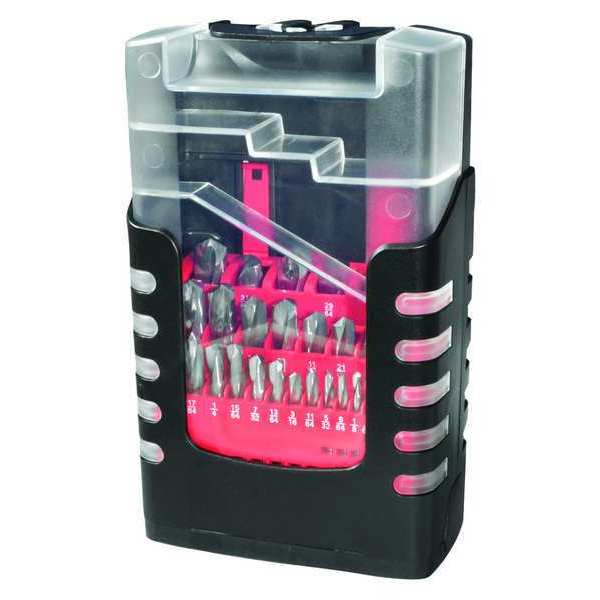

Screw Machine Drill Set, TiAlN

SKU
Brand GENERIC
Categories
Description Screw Machine Drill Bit Set, Number of Drill Bits 29, 135 Degrees Drill Bit Point Angle, Carbide, AlTiN, Drill Bit Sizes Included 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 11/64 in, 13/32 in, 13/64 in, 15/32 in, 15/64 in, 17/64 in, 19/64 in, 21/64 in, 23/64 in, 25/64 in, 27/64 in, 29/64 in, 3/16 in, 3/32 in, 3/8 in, 31/64 in, 5/16 in, 5/32 in, 5/64 in, 7/16 in, 7/32 in, 7/64 in, 9/32 in, 9/64 in, Fractional Inch, Drill Bit Point Type 4 Facet Point
graingerSKU: 45YJ60, mscSKU: , zoro_no: G4172275, mongo_id: 65bbe7ee22d7a989a98cb1ea

Web Price

$1,644.74 / each

Product Details

Application Metalworking

Coolant Fed Coolant Through

Coolant Through No

Country of Origin (subject to change) United States

Cutting Direction Right Hand

Decimal Equivalent 0.0625, 0.0781, 0.0938, 0.1094, 0.1250, 0.1406, 0.1562, 0.1719, 0.1875, 0.2031, 0.2188, 0.2344, 0.2500, 0.2656, 0.2812, 0.2969, 0.3125, 0.3281, 0.3438, 0.3594, 0.3750, 0.3906, 0.4062, 0.4219, 0.4375, 0.4531, 0.4688, 0.4844, 0.5000

Drill Bit Case Type Box

Drill Bit Dimension Type Fractional Inch

Drill Bit Finish TiAlN

Drill Bit Grouping Drill Bit Set

Drill Bit Material Solid Carbide

Drill Bit Point Angle 135 Degrees

Drill Bit Point Type 4 Facet Point

Drill Bit Size 1/16-1/2 by 1/64

Drill Bit Sizes Included 11/32 in, 11/64 in, 1/16 in, 1/2 in, 13/32 in, 13/64 in, 1/4 in, 15/32 in, 15/64 in, 17/64 in, 1/8 in, 19/64 in, 21/64 in, 23/64 in, 25/64 in, 27/64 in, 29/64 in, 31/64 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 5/64 in, 7/16 in, 7/32 in, 7/64 in, 9/32 in

Drill Diameter Tolerance +0.0000 in /-0.0005 in

Drill Length Class Screw Machine Length

Finish - Machining AlTiN

Flute Length 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1-1/16, 1-1/8, 1-3/16, 1-1/4, 1-5/16, 1-3/8, 1-7/16, 1-1/2, 1-9/16, 1-5/8, 1-11/16, 1-11/16, 1-3/4, 1-13/16, 1-7/8, 1-15/16, 2, 2-1/16, 2-1/8, 2-1/8, 2-3/16, 2-1/4

Flute Type Spiral

Grade C2 Sub-Micron Solid Carbide

Includes 1/16 in Screw Machine Drill, 1/2 in Screw Machine Drill, 1/4 in Screw Machine Drill, 1/8 in Screw Machine Drill, 11/32 in Screw Machine Drill, 11/64 in Screw Machine Drill, 13/32 in Screw Machine Drill, 13/64 in Screw Machine Drill, 15/32 in Screw Machine Drill, 15/64 in Screw Machine Drill, 17/64 in Screw Machine Drill, 19/64 in Screw Machine Drill, 21/64 in Screw Machine Drill, 23/64 in Screw Machine Drill, 25/64 in Screw Machine Drill, 27/64 in Screw Machine Drill, 29/64 in Screw Machine Drill, 3/16 in Screw Machine Drill, 3/32 in Screw Machine Drill, 3/8 in Screw Machine Drill, 31/64 in Screw Machine Drill, 5/16 in Screw Machine Drill, 5/32 in Screw Machine Drill, 5/64 in Screw Machine Drill, 7/16 in Screw Machine Drill, 7/32 in Screw Machine Drill, 7/64 in Screw Machine Drill, 9/32 in Screw Machine Drill, 9/64 in Screw Machine Drill

Largest Drill Bit Size 1/2 in

List Number 460

Material - Machining Carbide

Material Grade - Machining C2

Measurement System Fractional Inch

Number of Drill Bits 29

Number of Flutes 2

Overall Length 1-5/8, 1-11/16, 1-3/4, 1-13/16, 1-7/8, 1-15/16, 2-1/16, 2-1/8, 2-3/16, 2-1/4, 2-3/8, 2-7/16, 2-1/2, 2-5/8, 2-11/16, 2-3/4, 2-13/16, 2-15/16, 3, 3-1/16, 3-1/8, 3-1/4, 3-5/16, 3-3/8, 3-7/16, 3-9/16, 3-5/8, 3-11/16, 3-3/4

Package Quantity 1

Point Type Four Facet Point

Primary Material Application All Materials

Primary Material Application ISO Code H, K, M, N, P

Shank Dia. 1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 11/64, 3/16, 13/64, 7/32, 15/64, 1/4, 17/64, 9/32, 19/64, 5/16, 21/64, 11/32, 23/64, 3/8, 25/64, 13/32, 27/64, 7/16, 29/64, 15/32, 31/64, 1/2

Shank Type Straight

Shank Type - Machining Straight

Sizes Included 1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 11/64, 3/16, 13/64, 7/32, 15/64, 1/4, 17/64, 9/32, 19/64, 5/16, 21/64, 11/32, 23/64, 3/8, 25/64, 13/32, 27/64, 7/16, 29/64, 15/32, 31/64, 1/2

Smallest Drill Bit Size 1/16 in

Spiral Direction Right Hand

Standards Not Rated

Web Construction Split

Web Thinning Thinned
